PUMPING SOLUTIONS

Pumping Solutions are one of the most crucial process flow elements. We strive to bring to our customers robust and reliable solutions.

We offer Pumps with applications spread across industries to meet critical demands in various industrial, process and laboratory applications. Pumps designed in Italy, Spain, India, Switzerland, Czech Republic, are tried tested and have a wide installation base across the globe for more than 30+ years on an average.

Reach out to our team to help us understand your needs: click here

PROCESS :

Air Operated Double Diaphragm Pumps:

Debem’s air operated double diaphragm pumps are ideal for pumping liquids with high apparent viscosity, even if containing suspended solids. The stall-prevention circuit guarantees a safe operation, without requiring lubricated air.

MAGNETIC DRIVE CENTRIFUGAL PUMPS

DEBEM Srl (PVDF / PP)

Magnetic Drive 06 PVDF

Debem’s magnetic drive centrifugal pump is the ideal solution for numerous applications. The complete lack of metal parts in contact with the fluids being pumped renders them ideal for working with acids and corrosive products.

DM SERIES: magnetic drive centrifugal pump with a resin casing (PP/PVDF). The complete lack of mechanical seals and internal metal parts make these pumps ideally suited to pumping highly corrosive and aggressive fluids.

know more



GemmeCotti

SS316 Pumps

GemmeCotti pumps are successfully used in many different industries including: chemical and petrochemical, pharmaceutical, oil refinery, electroplating, printed circuits, electronic, photography, military, water treatments, biotechnology, paper mills, textile, sugar plants, food processing, dairies and many others.

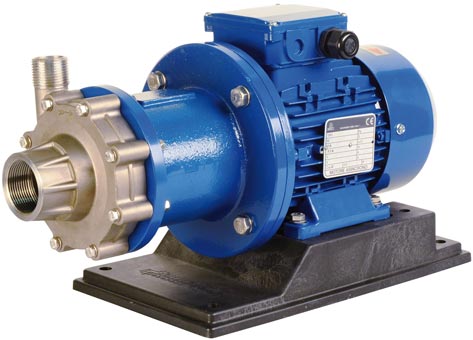

SS316 Mag Drive Pump

Mag drive centrifugal pumps series HTM SS are made of AISI 316 or other metallic materials (Hastelloy B or Titanium) and are suitable for hydrocarbons, solvents and dangerous liquids. Thanks to the innovative mag drive system, pumps model HTM SS reduce the risks of losses and the maintenance costs. The transmission of the motion occurs through magnetic joints without using mechanical seals. assuring maximum safety and efficiency. The pumped liquid has to be clean and without solids in suspension.

Typical applications:

▪ Corrosive, toxic, noxious and carcinogenic liquids
▪ Hydrocarbons, pyrophorics and other flammables
▪ Heat transfer oils
▪ Refrigerants and cryogenics
▪ Radioactive liquids

VISIT PAGE

FLUSSMANN PUMPSFLUSSMANN

FDP LOBE PUMPS

The FDP+ pump is a lobe rotor positive displacement pump of a sanitary design suitable for use in the dairies, foodprocessing, beverage, pharmaceutical and fine chemicals industries.

This pump is perfect for managing all kinds of fluid, of either low or high viscosity, in the food-processing, dairies, and cosmetics industries, as well as for filtering and bottling applications.

Fluids containing fragile solids such as junket can be pumped without damage thanks to the specially designed lobes.

  • Max.flow: 160 m³/h
  • Max.differential pressure: 12 bar
  • Max.working pressure: 16 bar
  • Max.working temperature: -10 ºC – +120 ºC (EPDM) (SIP, max. 30 min)
  • Max.speed: 950 rpm
  • Various kinds of drives and protections (gearbox drive with optional frequency converter, pulley/mechanical drive speed selector).
  • Trolley and/or control panel. Connections: clamp, SMS, RJT, etc. ATEX version available.
  • Mechanical seals: SiC/SiC or TuC/SiC.
    Cooled mechanical seal, pressurised double mechanical seal, lip seal or O-ring seal.
    Gaskets in FPM and PTFE. Relief valve on the front cover or external by-pass.
    Bi-wing lobes. Heating chamber.
    Isolation can.
    Vertical support. Rectangular nozzle.

Know More

FTS TWIN SCREW PUMPS

Twin screw pumps are predestistinated by their operation mode and the construction for low shearing and smooth handling of sensitive products.

The axial transporting movement, without changing direction,as well as the non-contacting intermeshing screws,provide optimum results.

  • Max.flow: 100m3/h
  • Max.differential pressure: 20 bar
  • Max.working pressure: 25 bar
  • Max.working temperature: -10 ºC – +130 ºC
  • Max.speed: 950 rpm
  • Viscosity up to 1.000.000 mPa·s
    Various kinds of drives and protections (gearbox drive with optional frequency converter, pulley/mechanical drive speed selector).
    Trolley and/or control panel.
  • Connections: clamp, SMS, RJT, etc. ATEX version available.
  • Mechanical seals: SiC/SiC or TuC/SiC.
    Cooled mechanical seal, pressurised double mechanical seal, lip seal or O-ring seal.
    Gaskets in FPM and PTFE. Relief valve on the front cover or external by-pass..
    Self priming without any auxiliary device

Read More
