Magnetic drive pumps have been a critical part of the chemical industry globally. Magnetic drive pumps allow users to safely pump corrosive and hazardous chemicals or fluids from point A to point B. The technology and innovation in these assure users of increased safety and regulatory compliance.
GemmeCotti has been producing chemical pumps for acids and dangerous liquids since 1992, when its founders, Enrico Gemme and Marino Cotti, started their own company after considerable experience on pump design and production.

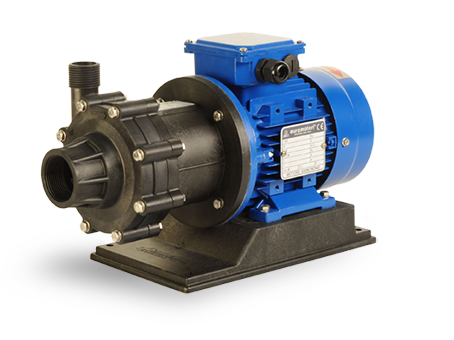

MAGNETIC DRIVE PUMPS
Magnetic drive pumps have a special hermetic pump design prevents any leakage of fluid and fugitive emissions, that in case of chemicals, corrosive liquids, explosive and flammable fluids could be very dangerous for people dealing with the pump and especially for the environment. So mag drive pumps allow to follow strict environmental and safety objectives required by many regulations. We shouldn’t forget also that some liquids could be very expensive and their loss due to a seal failure may cause high unnecessary extra costs.
Mag drive pumps are very reliable and need very low maintenance thanks to their simple design. With normal working conditions these pumps can work without any kind of repair for more than a decade so their life cost is highly reduced even if it’s always better to check o-rings and bearings every 1 – 2 years just to be sure that there is no wearing.
GemmeCotti is a leading chemical pump manufacturer, our range of chemical pumps includes: magnetic drive centrifugal pumps, mag-drive turbine pumps, mag-drive vane pumps, vertical pumps, mechanical seal pumps, vacuum pumps, ATEX pumps and portable pumps, manufactured in thermoplastic materials (PP or PVDF) or metallic materials (AISI 316).
RANGE OF PUMPS
How to choose a Chemical Pump effectively
GEMMECOTTI ACCESORIES

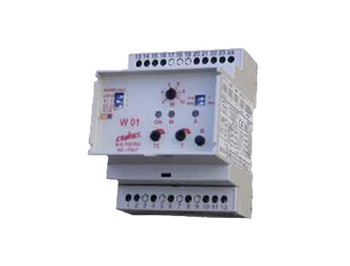

The installation of W01 Emirel prevents expensive damages to pumps because it avoids the dry-running working, the closed discharge and the blocked suction. We recommend the usage of this instrument to unload tank truck or every other application in which it’s not sure that the liquid is constantly present in the pipes.
MAGNETIC DRIVE PUMP SYSTEM
Magnetic drive pumps have a special sealless design that is suitable for pumping corrosive and dangerous liquids thanks to the high chemical resistance and to the absence of leakage and emissions. The structure is really simple and it requires very little maintenance with consequent savings in terms of repairing, spare parts and machine downtime costs during the pump life.
In magnetic pumps, there is an external magnet which is connected to the shaft of the electric motor.
The synchronous motion is transmitted from the motor to the rotor (consisting of the internal magnet and the impeller) through the external magnet. The two magnets never come into contact, they are moved by the magnetic field only. The impeller connected to the internal magnet spins around a static shaft and the liquid moves through the pump. The whole hydraulic part is hermetically sealed: in the space between the magnets there is a rear casing which closes on the pump head and prevents the pumped liquid from coming out of the pump.
The pumped liquid must be clean, without solids in suspension (max. quantity of solids: max 2% – max 1mm).
