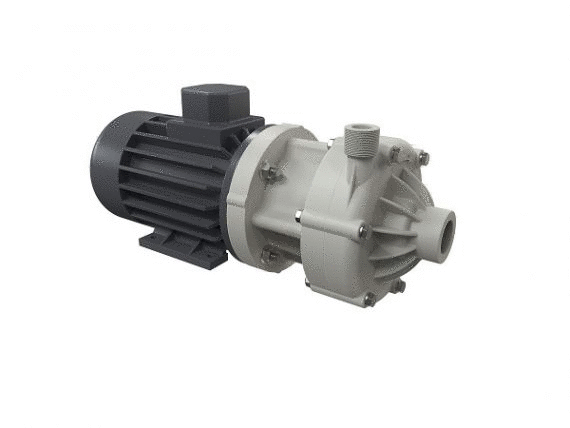

Magnetic Drive Centrifugal Pump DM

Debem’s magnetic drive centrifugal pump is the ideal solution for numerous applications. The complete lack of metal parts in contact with the fluids being pumped renders them ideal for working with acids and corrosive products.

DM SERIES: magnetic drive centrifugal pump with a resin casing (PP/PVDF). The complete lack of mechanical seals and internal metal parts make these pumps ideally suited to pumping highly corrosive and aggressive fluids.

Available Models :

  • DM06  | 7 m3/hr , G 1″

  • DM10  | 13 m3/hr, G 1 1/2″

  • DM15   | 23.5 m3/hr, G 1 1/2″

  • DM30  | 35 m3/hr, G 2″3

Products :

Magnetic Drive
 DEBEM | Magnetic Drive Pump (PP / PVDF)

Standard electric motors:

  • Kw 0,25 – HP 0,35 • Box B3+B5 RPM 2900 • Three-phase 230/400 V • 50/60 HZ • 2 Pole IE1 Protection rating IP55 • Ambient temperature -30°C + 45°C
  • Kw 0,37 – HP 0,5 • Box B3+B5 RPM 2900 • Three-phase 230/400 V • 50/60 HZ • 2 Pole IE1 Protection rating IP55 • Ambient temperature -30°C + 45°C
  • Kw 0,25 – HP 0,35 • Box B3+B5 RPM 2900 • Single-phase • Ambient temperature -30°C + 45°C
  • Kw 0,37 – HP 0,35 • Box B3+B5 RPM 2900 • Single-phase • Ambient temperature -30°C + 45°C

Electric motors available on request:

  • SINGLE-PHASE
  • ATEX
  • NEMA 56C (only pump available, with American flange, for coupling with NEMA motor – the motor is not available in our standard)
